System Model | XS1000G-D12R-G4 |
Processor | Supports 1 or 2 fourth- or fifth-generation Intel® Xeon® Scalable processors with a maximum TDP of 350W. |
Chipset | Intel® C741 Series Server-Specific Chipset |

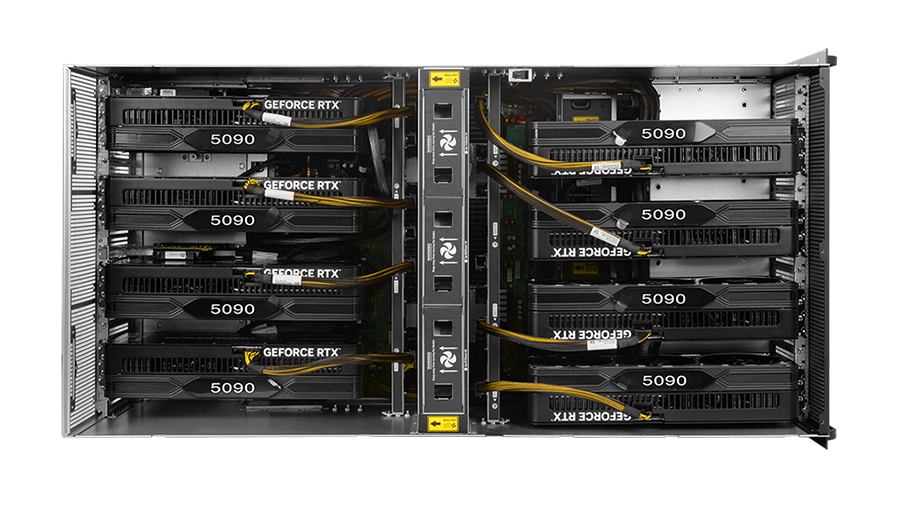

GPU Card | Passthrough 8-GPU Server (Fan Version): Supports 8× 600W 3-width, 3.3-width, 3.5-width, or 4.5-width RTX 5090 fan GPUs or other 600W fan GPUs. Features a 4+4 front-rear separated upper and lower airflow layout.
Passthrough 8-GPU Server (Blower Version): Supports 8× 600W 2-width or 2.5- width RTX 5090 blower GPUs or other 600W blower GPUs. Features an 8-GPU rear-aligned centralized airflow cooling layout. |
Memory | 32 DDR5 memory slots, supporting DDR5 4400/4800/5600 MHz memory. |
Storage Controller | 2 Slimline 4x ports (SATA), 2 M.2 slots (2280/22110, SATA/PCIe 3.0 x1). |
Storage | 12 Hot-Swap 3.5"/2.5" SAS/SATA/NVMe drives. |
I/O Ports | Front Ports: 2x USB 3.0, 1x VGA
Rear Ports: 1x Serial Port, 2x USB 3.0, 1x VGA, 1x RJ45 Management Port (optional upgrade: 2x 10G RJ45 Service Ports) |
PCIe Expansion | Supports up to 13 PCIe expansion slots. |
Power Supply | Supports 8 CRPS 1600W/2200W/2600W power modules, with hot-swappable and N+N, N+M redundancy modes. |
Fan | Standard 6*6056 and 6*12038 fans. |
Management | 1 dedicated RJ45 management network port. |
Security | Supports TPM 2.0 module, chassis intrusion alarm, BMC/BIOS redundancy. |
Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, VMware ESXi, etc. |
Server Size | 910 x 446 x 364.6mm (D * W * H). |
Working Temperature | Operating temperature: 5ºC - 35ºC (without direct sunlight); Storage temperature: -40ºC - 70ºC. |
